Introduction:

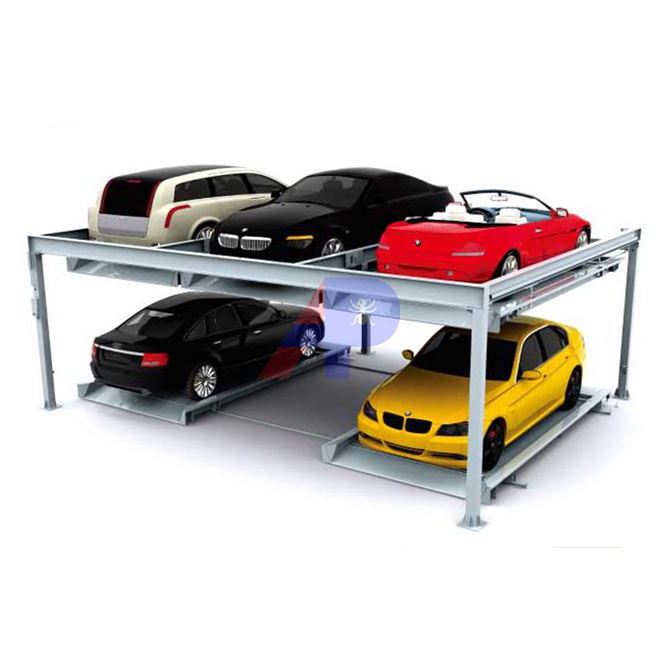

The two floor puzzle parking system and parking equipment is arranged in two layers and multiple rows, and an empty parking space is arranged on the first floor of each equipment partition.
The two floor puzzle parking system and parking equipment is arranged in two layers and multiple rows, and an empty parking space is arranged on the first floor of each equipment partition. Lifting equipment through the two layer board and a layer of transverse loading plate to achieve access to the car. A layer of parking spaces can directly access the car; two layer a parking spaces need to access the car, a car carrying mobile layer corresponding to a parking position, the traversing vacancy will access the car to make the two layer board is below the two layer board to achieve access to the car to the ground.
Product advantage：
1 The size of the equipment can be customized individually according to the customer's requirements.
2 he structure of the equipment is all laser cutting, beautiful appearance, easy installation and easy maintenance.
3 Save space and make full use of space.
4 Widely used in hotels, enterprises, public institutions and residential areas.
5 Comprehensive safety protection system, such as anti fall device, mechanism detection, people or cars entering the parking lot, restriction mechanism, interlocking mechani
Product parameters:
|
Name |
Puzzle Parking system PSH2F |
|
Size of car |
5000*1850*1550MM |
|
Parking spaces |
5-7-9 |
|
Lifting weight |
≦2000KG |
|
Lifting height |
1900MM |
|
Lifting speed |
5-6M/MIN |
|
Transferring speed |
7-9M/MIN |
|
Car carrier of plate |
2400MM |
|
Power of lifting motor |
2.2KW |
|
Power of transferring motor |
0.2KW |
|
Mode of operate |
LCD/ IC card / maual |
|
Mode of control |
PLC control |
|
Mode of drive |
Motor and chain |
|
time for car reception |
133S |
|
Electric motor |
AC380V,50Hz, 3 phase |
|
Frame composition |
The columns and side beams are made of H steel, channel steel, angle steel and square pipe |
|
Protection device |
Motor +chain |
|
Surface treatment |
Powder coaled / Hot dip galvanizing |
Drawing:
Qingdao Lanhai Shengyuan Machinery Equipment CO.,LTD is one of China\'s simple parking equipment manufacturer,
committed to provide the most suitable and cost effective parking system solutions to you.
As a manufacturer, we focus on quality and technical innovation. The company has passed the ISO 9001:2008 international quality system certification and the EU compulsory safety certification(CE).
