Introduction:

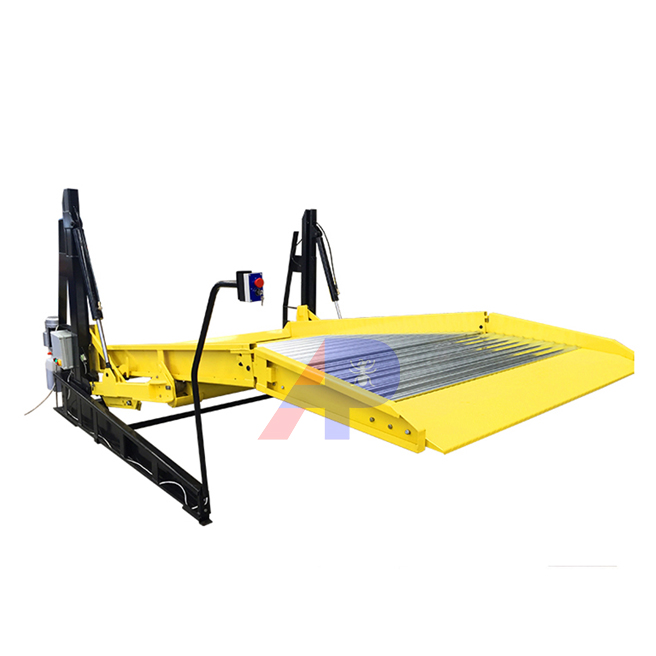

Tilt Parking lift is economical model to be used for stack parking in small car. The device enjoys great popularity with the features of simple structure, easy assembling and space-saving.
Products Description:
Tilt car parking lift has two parking lot totally. It can park two cars.The lower level car can come in or come out at liberty.,If you want to pick up the upper car, should drive out the lower car firstly.
Tilt car parking lift’s lifting height is 1700mm, lifting weight is 2000kgs. It is suitable to parking sedan .
Tilt car parking lift can make the best use of the space because its platform is tilt.The net height of tilt car parking lift not lower than 3200mm .
can also customize the lifts according to customers’ requirement.
Tilt car parking lift is widely used in banks, hospitals, hotels, supermarkets, entertainment places, office enterprises, public institutions and residential areas to set up a parking lot.
Advantages:
All structure of tilt car parking lift adopts laser cutting, the appearance is attractive. It is easy to install and convenient to maintain.
The electric control and hydraulic transmission can ensure the smooth running of equipment.
The platform adopts totally enclosed design, can avoid the oil spilling pollution to the lower vehicle.
Protective Device
Anti dropping device: The column has insurance hook,when the platform rise to the limited switch,it will lock automatically to prevent the platform dropping accidentally.
Limited switch:Limit the platform’s lifting height,protect the equipment to perform safely and steadily.
The emergency stop switch: Press the emergency stop button to cut off the power, stop the equipment operation if there is an abnormal situation during performance.
Technical Parameters：
|
Name |
Tilt Car Parking Lift |
|
Model |
PJS301-2000 |
|
Lifting weight |
≦2000KG |
|
Lifting height |
1700MM |
|
Platform size |
2100MM |
|
Motor |
2.2KW |
|
Operation mode |
Button/Key |
|
Control mode |
Electric control |
|
Drive mode |
Hydraulic drive |
|
Voltage |
220-380V, 50/60HZ,1/3 phase |
|
Equipment size |
3810*2485*1975MM |
|
Package size |
2700*700*1900MM |
|
Weight |
850KG |
|
Noise |
70DB |
|
Surface treatment |
Powder coated / Hot-Galvanizing（optional） |
Detailed picture
Overall Dimension :
video: https://youtu.be/7qP8mOVJpQQ
Qingdao Lanhai Shengyuan Machinery Equipment CO.,LTD is one of China\'s simple parking equipment manufacturer,
committed to provide the most suitable and cost effective parking system solutions to you.
As a manufacturer, we focus on quality and technical innovation. The company has passed the ISO 9001:2008 international quality system certification and the EU compulsory safety certification(CE).
