Introduction:

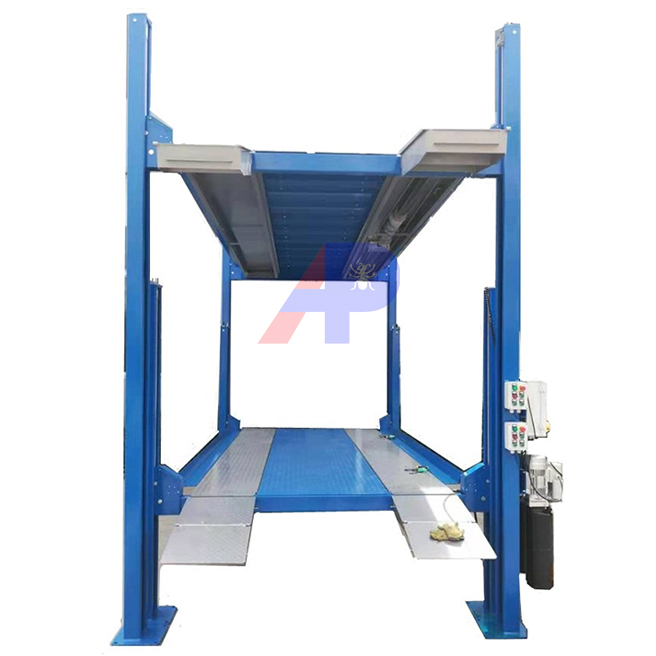

1. 2 separated 4 post car parking lifts installed together, one external and one internal.
2. Hydraulic driven cylinder with wire rope lifting system through sheaves.
Product Features :
1. 2 separated 4 post car parking lifts installed together, one external and one internal.
2. Hydraulic driven cylinder with wire rope lifting system through sheaves.
3. Double safety locks in each post: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4. Foldable ramps suitable for sport cars and occupy less space.
5. Automatic locking system of the latches inside ladders while electromagnetic lock release through push button on operation box.
6. Electric control panel& hydraulic power unit of external lift will be placed inside a compartment fixed to the back side of its platform.
7. Electric control panel& hydraulic power unit of internal lift will be placed inside a compartment fixed to the right side of its platform.
8. Separate Operation box for each lift, will be fixed on the front right post.
9. Wheel stoppers on upper platform.
10. Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated.
Technical Parameters：
|
Name |
FOUR POST PARKING LIFT FOR 3 CARS |
|
Model |
PJS601-2700 |
|
Lifting capacity |
2700 kg / platform, and 5400 kg totally |
|
Net lifting Height |
1800/3500 mm |
|
Unit External dimensions |
6577 *2682*4001 mm |
|
Platforms Length x Width |
Lower : 4198 x 1900 mm &Upper : 4780 x 1900 mm |
|
Runway type |
Checkered steel plates |
|
Electric parts |
Original Chint |
|
Brand of oil seals in cylinder |
Aston , Italy |
|
Lock release type |
Electromagnetic lock release |
|
Middle in the runway |
Pattern middle plate |
|
Type of ramp |
Foldable ramps |
|
Safety Devices |
One piece adjustable safety lock ladder and the other is activated automatically in case of steel wire rupture |
|
Operation Type |
Push buttons on operation box |
|
Power Supply |
380/ 220 V , 50/60 Hz , 1/3 Ph |
|
Motor Capacity |
2 separate units each is 2.2 Kw. |
|
Packing size |
4860*840*550mm and 4300*700*500mm |
Drawing:
video: https://youtu.be/OSAPfxsA_Sc
