Introduction:

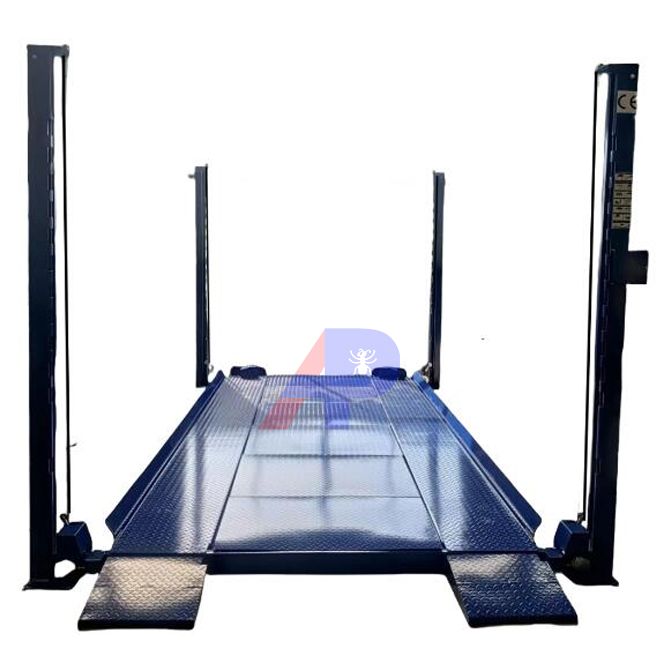

Four post parking lift (New model )
New laser cutting locking hole, one-time bending forming, higher column strength.
Hydraulic oil cylinder driven by steel wire rope. Equipped with wire rope anti breakage device.
Product Features :
1. New laser cutting locking hole, one-time bending forming, higher column strength.
2. Hydraulic oil cylinder driven by steel wire rope. Equipped with wire rope anti breakage device.
3. Self lubricating polymer polyethylene slider.
4. Column limit switch, height limit automatic shutdown.
5. The running board is reinforced with a load capacity of up to 3.6 tons.
6. Electric unlocking, manual unlocking or electric lifting, manual unlocking
7. The middle plate, side guard plate, and universal wheel are optional.
Technical Parameters：
|
Name |
Four post parking lift (New model ) |
|
|
Model |
PJS601N-2700 |
PJS601N-3600 |
|
Dimension |
4825*2700*2224mm |
4825*2700*2524mm |
|
Lifting weight |
2700 kg |
3600kg |
|
Platform size |
4000*473mm |
4000*473mm |
|
Lifting height |
1800/2100mm |
1800/2100mm |
|
Cylinder quantity |
Single cylinder hydraulic |
|
|
Motor power |
2.2KW |
3KW |
|
Rise/Drop Time |
70s/60s |
|
|
Control mode |
Electric control |
|
|
Operate mode |
key |
|
|
Lock mode |
Electric lock/Manual lock |
|
|
Drive mode |
hydraulic and wire rope drive and keep balance |
|
|
Electric |
220-415V ,50/60 HZ, 1/3 phase |
|
|
Surface treatment |
Powder coated |
|
|
Size package |
4200*550*2100mm (3 units) |
|
|
|
750/950kg |
|

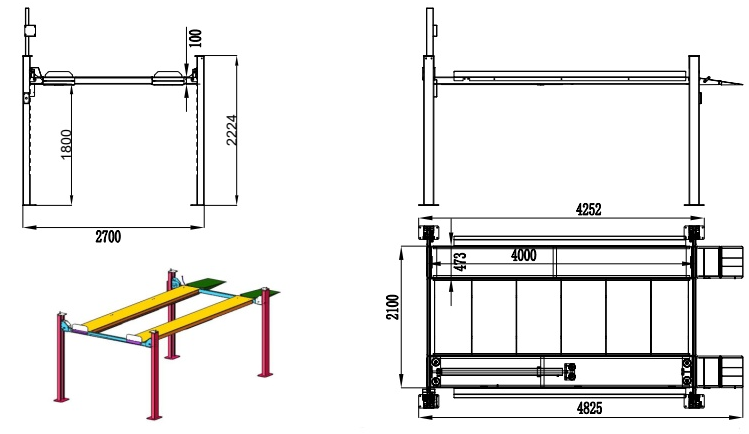

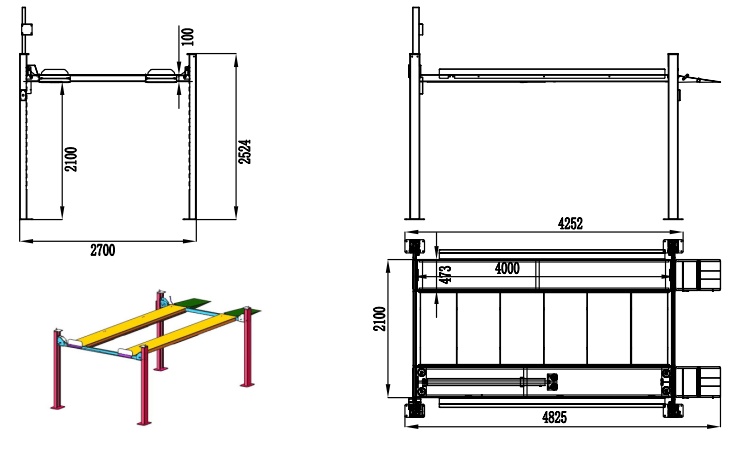

Drawing:
