Introduction:

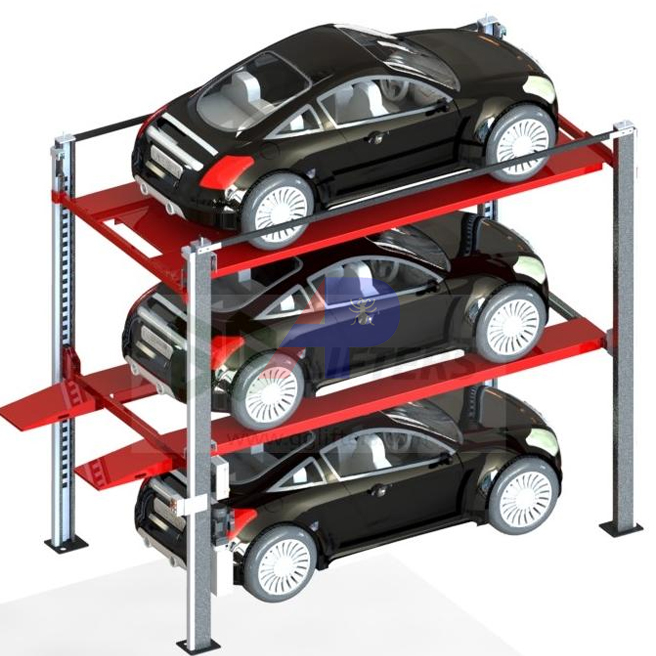

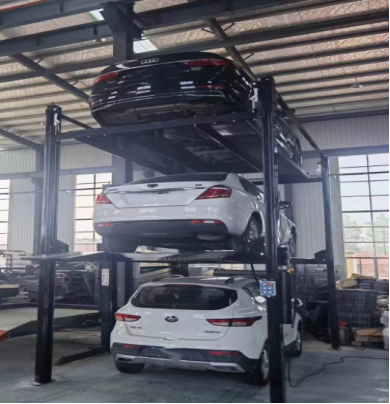

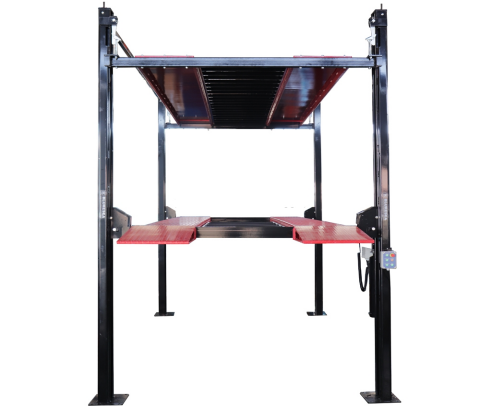

PJS601-3 Four post triple stacker parking lift,
It is suitable for long-term storage and parking in car 4S stores, vintage car collections, etc.
1. Hydraulic driven & wire rope lifting system,4 ea mechanical locks on top platform to ensure safety.
2.Electric multi-level lock, wire rope anti-dislodgement lock and electrolytic lock with the perfect combination of double protection inside the column slide storage.
3.Coulumns can be connected together to save space.
4.Flexible for different spaces.
Technical Parameters
|
Name |
FOUR POST TRIPLE STACKER PARKING LIFT |
|
Model |
PJS601-3-1800/2100 |
|
Lifting capacity |
2700 kg /2000kg |
|
Net lifting Height |
1800/1800 mm -2100/2100 mm |
|
Unit External dimensions |
5862 *2576*4368 mm |
|
Platforms Length x Width |
4948 x 473 mm |
|
Runway type |
Checkered steel plates |
|
Electric parts |
Original Chint |
|
Brand of oil seals in cylinder |
Aston , Italy |
|
Lock release type |
Electromagnetic lock release |
|
Middle in the runway |
Pattern middle plate |
|
Type of ramp |
Foldable ramps |
|
Safety Devices |
OLimit protection, multi-stage anti-fall protection measures, There are 4 mechanical locks on the column |
|
Operation Type |
Push buttons on operation box |
|
Power Supply |
380/ 220 V , 50/60 Hz , 1/3 Ph |
|
Motor Capacity |
2.2 Kw. |
|
Packing size |
5100/700/2100mm0mm (2 units) |

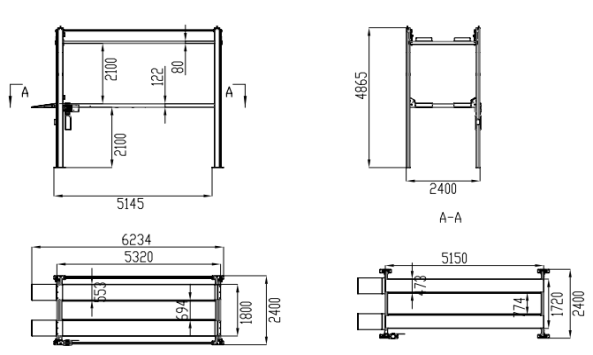

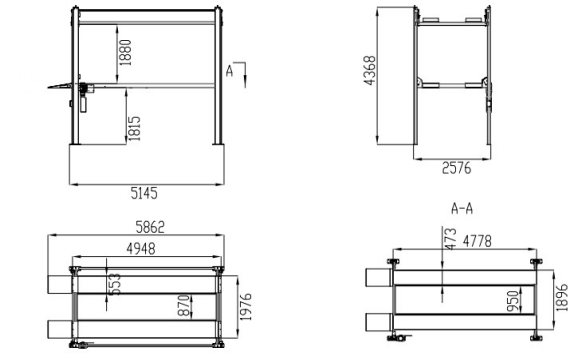

Drawings
