Introduction:

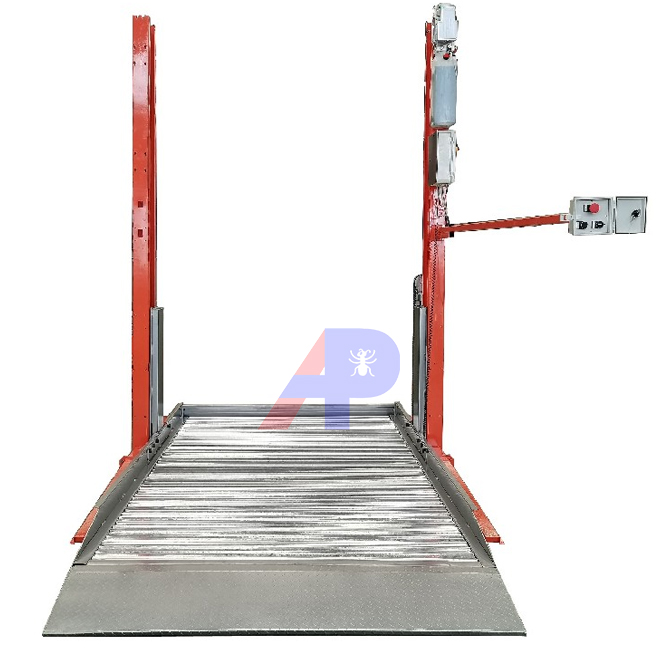

Two post parking lift have two levels,you can used it to parking 2 cars. Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars first.
Products description:
Two post parking lift have two levels,you can used it to parking 2 cars. Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars first.
Equipment max-lifting height is 2100MM, max-lifting capacity is 2300-3200kg. Suitable for parking SUV and sedan.Equipment size can be customized by customers.
This product is widely used in banks, hospitals, hotels, supermarkets, entertainment, office enterprises, public institutions and residential areas.
Product parameters:
| Name | Two post parking lift | |
| Model | PJS201-2300S | PJS201-2700S /PJS201-3200S |
| Dimension | 4042*2560*3000MM | 4466*2560*3500MM |
| Lifting weight | ≦2300KG | ≦2700/3200KG |
| Lifting height | 2100MM | 2100MM |
| Overall height | 3000MM | 3500MM |
| Width Platform | 2100MM | 2100MM |
| Packing size | 3600*800*700MM | 3800*1000*700MM |
| Equipment weight | 980 KG. | 1030 /1080KG |
| Cylinders | 2（Positive cylinder） | |
| Rated speed | 1.7-1.9.MMIN. | |
| Motor | 2.2 KW | |
| Mode of operation | Local Button / Remote key ( optional) | |
| Mode of control | Electronic contactor / PLC controller (optional) | |
| Mode of drive | Hydraulic driving, chain balance | |
| Electrics | 220-415V , 50/60 HZ ,1/3 phase | |
| Surface treatment |
Powder coated / Hot galvanized (optional)
|
|
Product advantage:

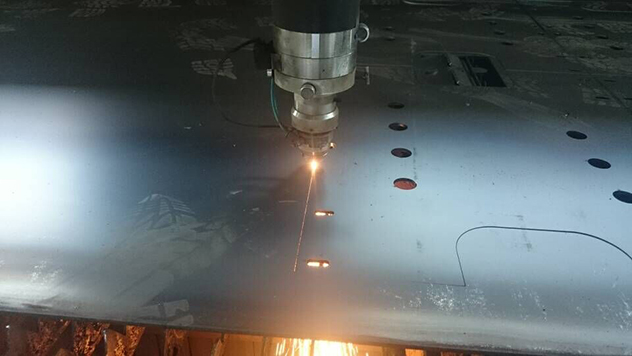

The structure of the equipment is made of laser cutting, after bending have beautiful appearance, easy installation and convenient maintenance.
The equipment Two oil Cylinder （Positive cylinder） to lift the platform,Cylinder seal is used in Italy Aston brand, to prevent oil spills.
Electric control、hydraulic drive、chain balance to make sure equipment running smoothly.
Unlock uses the AC24V magnet to automatically unlock both sides simultaneously.
The car platform use the totally enclosed design,to avoid leakage of rain and snow or water pollution in the lower cars.
Welding tube strengthening at the column on both sides,increase the bending strength of the column,and each column can be used interchangeably.
Protective device:
Falling proof device:there are 6 unlock holes, automatic locking, to prevent the car platform suddenly fall.
Limit switch: limit car platform lifting height, we can adjust the lifting height.）
Photoelectric switch:when the equipment work,if photoelectric switch feel have someone or something under the car platform,the equipment will stop running.
Water proof control box can waterproof, and have emergency stop button and self-lock button, control box have keys to prevent non managers from operating the device after locking.
Each cable in the electric control box has a wiring hole.
POWER UNIT :Famous Chinese brands:Huasheng electric machinery,specially for parking.The valve plate use aluminium alloy material
Drawing:
PJS201-2300S
PJS201-2700S /3200S
video: https://youtu.be/yaVw0Kd8JH8
