Introduction:
Single cylinder two post parking lift have two levels,you can used it to parking 2 cars. Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars first.
Products description:
Single cylinder two post parking lift have two levels,you can used it to parking 2 cars. Lower cars can be parked or taken at will, if we want to park or take the upper cars, we have to take the lower cars first.
Equipment max-lifting height is 2100MM, max-lifting capacity is 2000- 2700kg. Suitable for parking SUV and sedan.Equipment size can be customized by customers.
This product is widely used in banks, hospitals, hotels, supermarkets, entertainment, office enterprises, public institutions and residential areas.
Product parameters:
| Name | Single cylinder Two post parking lift | ||
| Model | PJS201-2000D | PJS201-2300D | PJS201-2700D |
| Equipment size | 4105*2560*3500mm | 4455*2560*3514mm | 4455*2560*3514mm |
| Lifting weight | 2000kg | 2300kg | 2700kg |
| Lifting height | 1900mm | 2100mm | 2100mm |
| Column height | 2800mm | 3000mm | 3500mm |
| Width platform | 2100mm | 2100mm | 2100mm |
| Package size | 3600*1000*700mm | 3800*1000*700mm | 3800*1000*700mm |
| Equipment weight | 900kg | 1050kg | 1100kg |
| Max-lifting height | 2100mm | ||
| Rate running | 2m/min | ||
| Power unit motor | 2.2kw | ||
| Type of Cylinder | Single stage hydraulic cylinder | ||
| Operation mode | Button/remote Key(optional) | ||
| Control mode | Electrical control | ||
| Derive mode | One hydraulic cylinder drive and 1 chain balance | ||
| Voltage | 220-415V, 50/60 HZ 1/3 Phase | ||
| Surface treatment | Powder coated/hot-galvanized (optional) | ||
Product advantage:
The structure of the equipment is made of laser cutting, after bending have beautiful appearance, easy installation and convenient maintenance.
The equipment one oil cylinder （Positive cylinder） to lift the platform,Cylinder seal is used in Italy Aston brand, to prevent oil spills.
Electric control、hydraulic drive、chain balance to make sure equipment running smoothly
Unlock uses the AC24V magnet to automatically unlock both sides simultaneously.
The car platform use the totally enclosed design,to avoid leakage of rain and snow or water pollution in the lower cars.
Welding tube strengthening at the column on both sides,increase the bending strength of the column,and each column can be used interchangeably.
The column can be shared and freely combined into two conjoined, three conjoined bodies or others,save costs and installation space.
Protective device:
Falling proof device:there are 6 unlock holes, automatic locking, to prevent the car platform suddenly fall.
Limit switch: limit car platform lifting height, we can adjust the lifting height
Photoelectric switch:when the equipment work,if photoelectric switch feel have someone or something under the car platform,the equipment will stop running.
Water proof control box can waterproof, and have emergency stop button and self-lock button, control box have keys to prevent non managers from operating the device after locking.
Each cable in the electric control box has a wiring hole.
POWER UNIT :Famous Chinese brands:Huasheng electric machinery,specially for parking.The valve plate use aluminium alloy material
Product drawing:

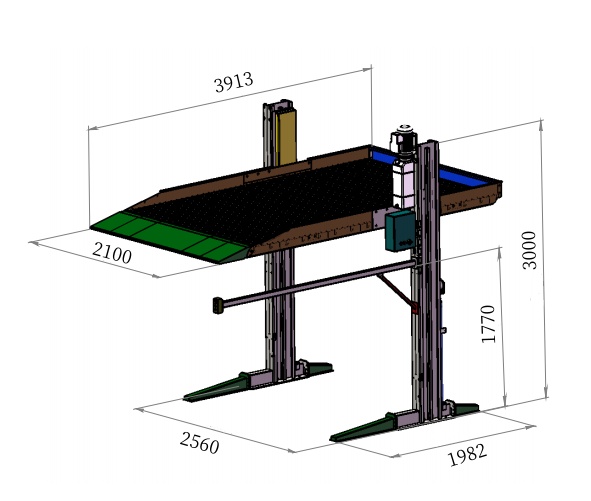

PJS201-2000D

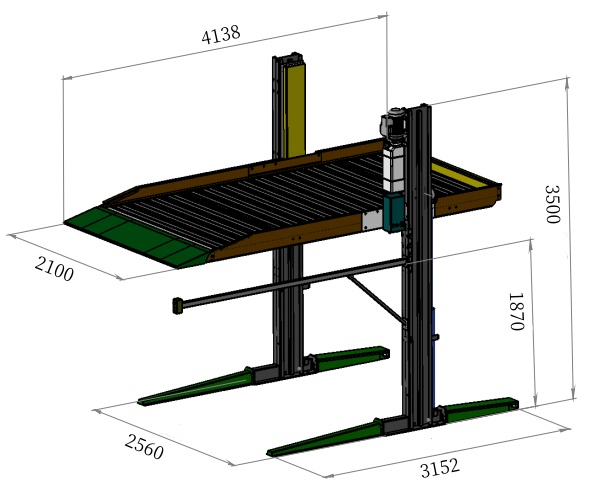

PJS201-2300D
PJS201-2700D

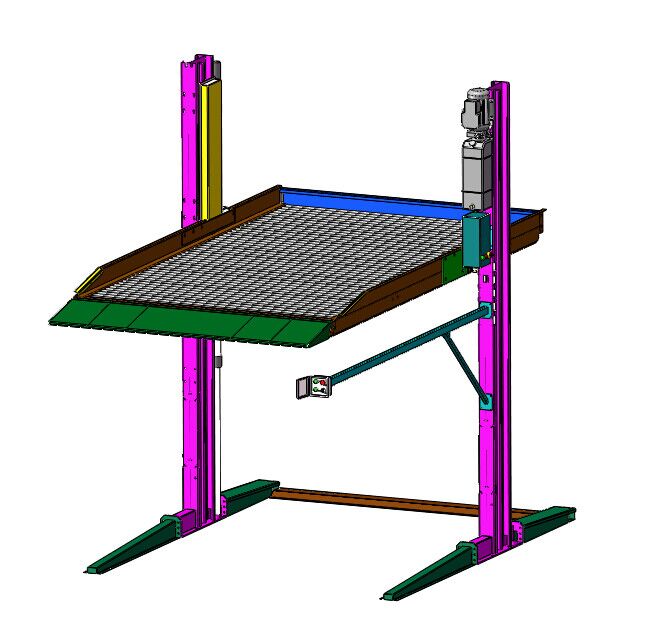

A -TWO COLUMN

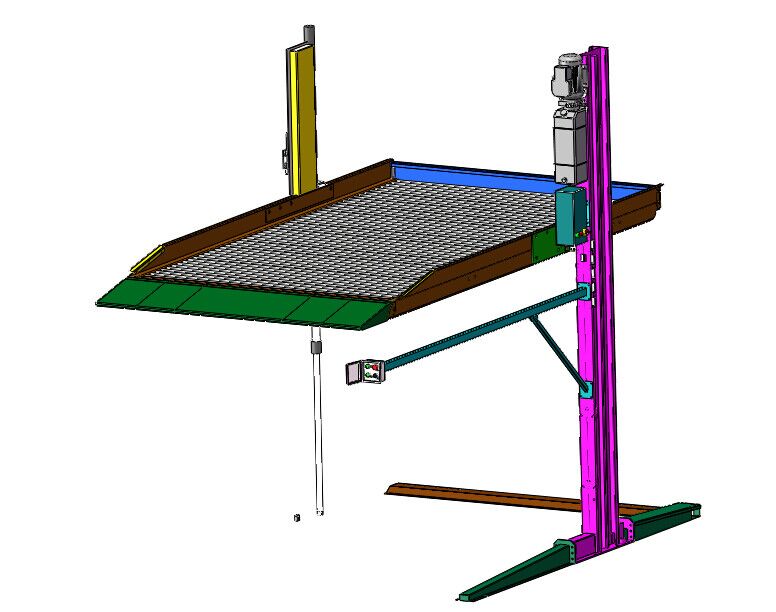

B- ONE COLUMN

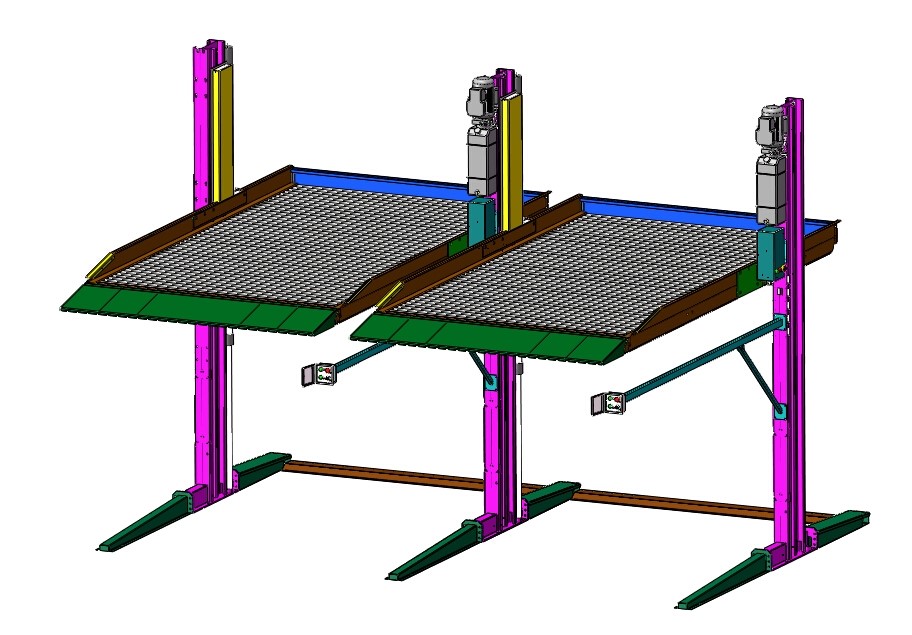

A+B ( TYPE SHARE COLUMN)

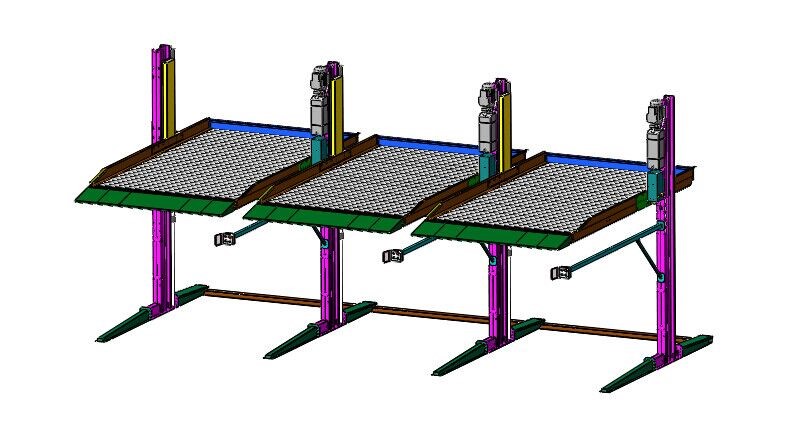

A+B+B ( TYPE SHARE COLUMN)
Products details:
video: https://youtu.be/lKix4EiQ6mk ,
